Dayton

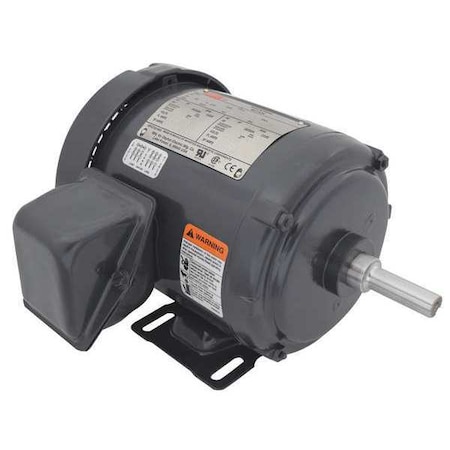

Three-Phase General Purpose Motor, 3/4 HP, 56 Frame, 208-230/460V AC Voltage, 3500 Nameplate RPM
SKU: IM-3167762 · MPN: 3N443 · UPC: 190735292648
$441.59
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 3500, Frame 56, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 2.4-2.2/1.1 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 75.5 Percent, Continuous Duty, 3001-3600
Specifications
| Brand | Dayton |
|---|---|
| MPN | 3N443 |
| UPC | 190735292648 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 30.8 lb |
