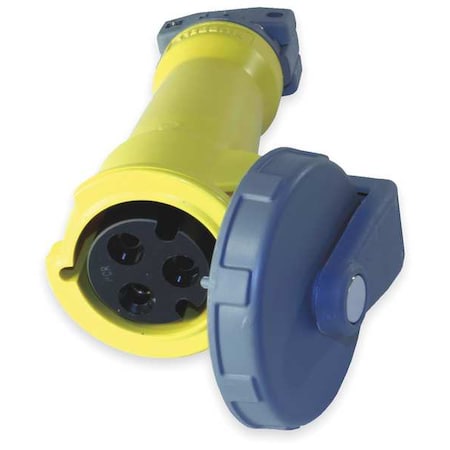

Watertight Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding, Yellow

Description

<p>The HUBBELL IEC Pin and Sleeve Connector is a electrical connector rated for use in industrial settings with specified current and voltage ratings. Rated for 30A and 125V AC, this connector features an insulated non-metallic housing made from Zytel 801 nylon and is compatible with the HBL Heavy Duty series. It uses pressure terminal screws for conductor connection and accommodates conductor sizes from #12 AWG to #8 AWG. The device meets multiple industry standards including CSA certification and UL listing to IEC 60309-1/2.</p><br /><br /><p>Key Features of the HUBBELL IEC Pin and Sleeve Connector:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 30 amps at 125V AC single-phase operation</li><br /><li>Watertight Construction: IP68/IP69K rated enclosure with gasketed cover; constructed to resist corrosion</li><br /><li>Material: Body constructed from Zytel 801 nylon; housing material grade PBT</li><br /><li>Cord Mounted Design: Accommodates cable diameters between 0.375 in and 1.25 in</li><br /><li>Wire Connection Type: Screw terminals support #12 AWG to #8 AWG conductors</li><br /><li>Number of Poles/Wires: Two poles, three wires (3-wire grounding)</li><br /><li>Temperature Range: Rated operating temperature range: -40°C to +75°C (without impact), -25°C (with impact)</li><br /><li>Horsepower Rating: Rated for use on circuits supplying up to 2 horsepower loads</li><br /><li>Coding &amp; Identification: Color-coded yellow housing for voltage identification; permanent product markings per standards</li><br /><li>Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 listed</li></ul><p>&nbsp;</p>
