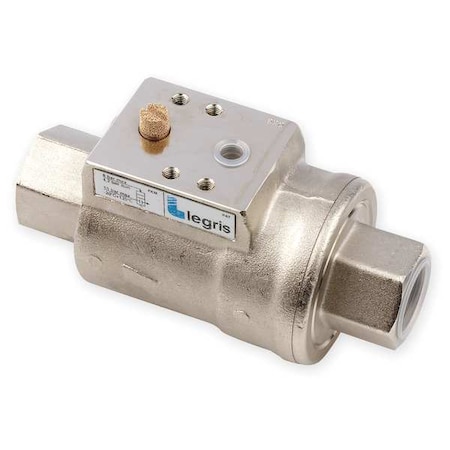

Axial Valve,FNPT,3/8" x 3/8"

Description

Axial Valve, Pipe Size 3/8 in x 3/8 in, Body Material Nickel-Plated Brass, Valve Configuration Normally Closed (NC), Pilot Port Size 1/8 in FNPT, Connection Type FNPT x FNPT, Maximum Operating Pressure 150 psi, Minimum Pilot Pressure 60 psi, Maximum Pilot Pressure 115 psi, Minimum Operating Temperature -4 Degrees F, Maximum Operating Temperature 275 Degrees F, Seal Material FKM, Hex Size 22 mm, Overall Length 3.6 in, Overall Height 2.12 in
