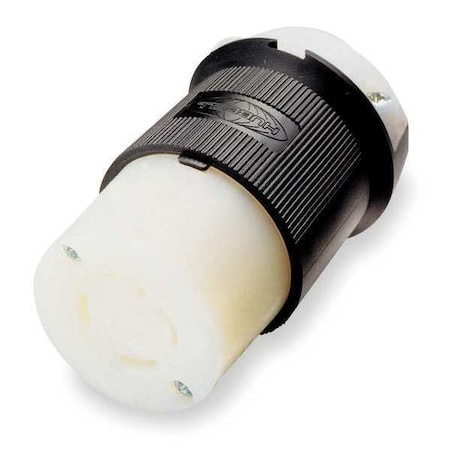

Locking Connector, Non-NEMA, 10/20 A, 250/600V AC, Three Phase, 4 Pole, Screw Terminals

Description

<p>The HUBBELL 20/10A Twist-Lock Connector is a locking connector rated for use in specified environments. It features a ribbed nylon housing; see specifications for material properties and resistance to impact and chemicals, as well as a cord grip design intended to support wire terminations that helps protect wire terminations from strain. The connector accommodates four poles and five wires, operates at 250/600V AC, and is suitable for use with stranded copper wire ranging from #16 AWG to #8 AWG.</p><br /><br /><p>Key Features of the HUBBELL 20/10A Twist-Lock Connector:<br><br /></p><ul><br /><li>Amperage Rating: Rated for 20/10 A current at up to 250/600V AC.</li><br /><li>Cable Range: Accepts cable diameters from 0.350" to 1.150".</li><br /><li>Body Material: Constructed with natural white nylon housing (omit claim).</li><br /><li>Contact Material: Brass contacts used for conductivity.</li><br /><li>Wire Connection Type: Screw terminals compatible with #16 AWG – #8 AWG stranded copper wire only.</li><br /><li>Temperature Rating: Operates continuously between -40°C (without impact) up to +75°C maximum temperature.</li><br /><li>Flame Resistance: Meets HB or better per UL94 or CSA standards for flammability.</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and listed to UL 498 requirements.</li><br /><li>Cord Grip Design: Includes integral dust shield, funnel-shaped entry, and cord-mounted configuration as described in product specifications.</li></ul><p>&nbsp;</p>
