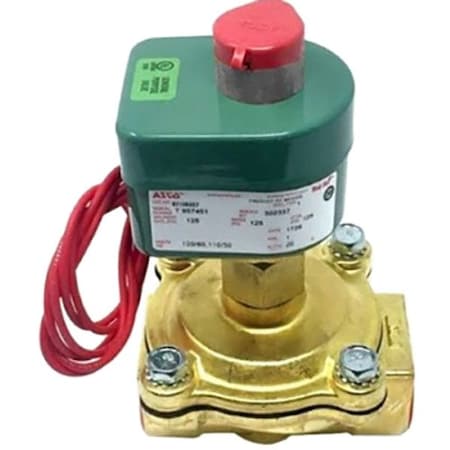

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 3/8 in Pipe Size, 120V AC, High Flow, Brass

Description

<p>The ASCO 8210B021 is a pilot-operated, 2-way/2-position solenoid valve with a normally closed starting configuration. It features a brass valve body and controls flow of air, inert gas, and water within an operating differential pressure range of 5 to 125 psi. The valve includes the required coil and sealing components, and operates on 120V AC; 50/60 Hz. Mounting orientation: Vertical; Environmental rating: Corrosive, Hazardous, Indoor, Outdoor. Orifice diameter: 5/16 inch; Cv: 1.2.</p> <p>Key Features: <ul><li>- Valve Design: 2-Way/2-Position, Pilot Operated, Normally Closed</li> <li>- Body Material: Brass</li> <li>- Nominal Pipe Size: 3/8 in, with NPT inlet and outlet connections</li> <li>- Operating pressure range: 5 to 125 psi for air, inert gas, and water</li> <li>- Media Compatibility: Air, Inert Gas, Water</li> <li>- Electrical Specifications: 120V AC, 6.5 W coil wattage, 1/2 in conduit hub electrical connections</li> <li>- Environmental rating: Corrosive; Hazardous; Indoor; Outdoor</li> <li>- Temperature Ratings: Ambient 14 to 140°F; fluid media up to 180°F</li> <li>- Physical Dimensions: Overall Length 1-11/16 in; Width 2 in; Height 2-15/16 in</li> <li>- Coil Enclosure: Watertight; Coil insulation class: F</li> <li>- Response Time: 1 second</li> <li>- Seal Material: NBR</li> <li>- IP Rating: 66</li> <li>- Includes: Coil and seal</li> <li>- Standards: UL Listed</li> <li>- Mounting Orientation: Vertical</li></ul></p>
