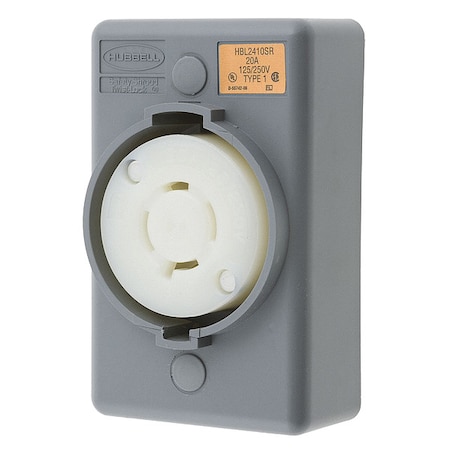

Locking Receptacle, L14-20R, 20 A, 125/250V AC, Single Phase, 3 Pole, Surface Mount, Gray

Description

<p>The HUBBELL 20A Twist-Lock Receptacle (L14-20R) is a locking receptacle intended for use in industrial settings, rated for single-phase operation at 125/250V AC, 20 amps. It features a twist-lock mechanism.</p><br /><br /><p>Key Features of the HUBBELL 20A Twist-Lock Receptacle L14-20R:<br><br /></p><ul><br /><li>NEMA Configuration: L14-20R, 3-pole, 4-wire grounded design</li><br /><li>Current/Voltage Rating: Rated for 20 A at 125/250V AC</li><br /><li>Material Construction: Engineered thermoplastic housing (Valox), nylon components; made with materials described as corrosion- and impact-resistant by the manufacturer</li><br /><li>Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)</li><br /><li>Wire Compatibility: Accepts #16 AWG – #8 AWG solid or stranded copper wire via screw terminals</li><br /><li>Mounting Type: Surface mount; non-flanged design</li><br /><li>Contact/Spring Material: Brass contacts and .031" brass spring material</li><br /><li>Flammability Rating: UL94 V2 or better per UL94/CSA standards</li><br /><li>NEMA Enclosure/IP Rating: NEMA Type 1 enclosure; IP20 rated for indoor use only</li><br /><li>Terminal Identification: Terminals marked according to UL498 (X, Y, Z, White, Green)</li><br /><li>Coding &amp; Polarization: Color-coded voltage rating remains visible during operation; polarized configuration </li></ul><p>&nbsp;</p>
