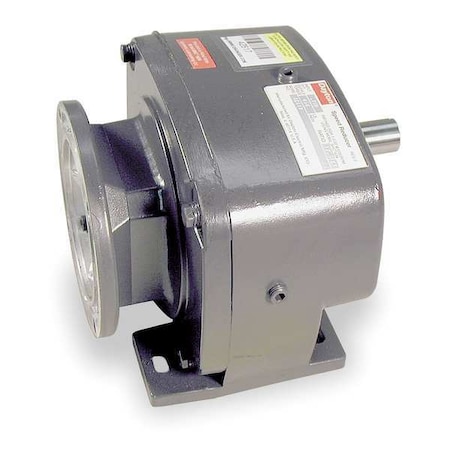

Speed Reducer, C-Face, 56C, 17.5:1

Description

Speed Reducer, Input Connection Type C-Face, Gear Type Helical, Spur, Output Shaft Type Keyed, Maximum Output Speed 99 RPM, Motor Frame Designation 56C, Base to Center 4.88 in, Gear Ratio 17.5:1, Rotation CW/CCW, Maximum Input Horsepower 0.75 hp, Maximum Output Torque 454 in-lb, Overhung Load Capacity 773 lb, Mounting Orientation Horizontal, Overall Height 7.47 in, Mount Hole Center-to-Center Length 4.5 in, Application Speed Reducer, Bearing Type Ball, Maximum Input Speed 1,800 RPM
