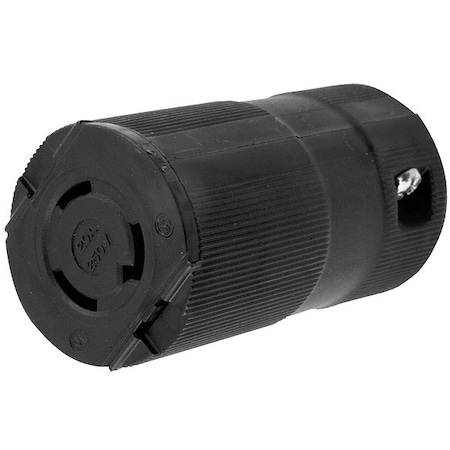

Locking Connector, L6-20R, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black

Description

<p>The HUBBELL 20A Midget Locking Connector (L6-20R) is an industrial locking connector intended for electrical connections in indoor dry locations. It features a two-pole, three-wire configuration and is rated for up to 20 amps at 250V AC. The connector utilizes clamp-type terminals that bundle conductor strands when tightened.</p><br /><br /><p>Key Features of the HUBBELL 20A Midget Locking Connector:<br><br /></p><ul><br /><li>Amperage/Voltage Rating: Rated for 20 A and up to 250V AC single-phase applications.</li><br /><li>NEMA Configuration: L6-20R with straight connection orientation.</li><br /><li>Cable Range: Accepts cord diameters from 0.325" to 0.720".</li><br /><li>Wire Size Compatibility: Accommodates #14 AWG to #8 AWG stranded copper wire using screw terminals.</li><br /><li>Nylon housing; insulated thermoplastic body</li><br /><li>Brass contacts</li><br /><li>Cord Grip: Integrated cord grip prevents slippage and reduces strain on terminals during use.</li><br /><li>Temperature Rating: Operates continuously from -40°C (without impact) up to +75°C maximum temperature rise of ≤30°C after overload cycles.</li><br /><li>Flame Resistance &amp; Dielectric Strength: Meets UL94 HB flammability rating; withstands dielectric voltage of at least 2,000V minimum per standards CSA C22.2 No.42, Fed.Spec. W-C-596, UL498 certification requirements.</li><br /><li>IP Rating &amp; Environmental Suitability: IP20 rated for indoor dry conditions unless protected by additional means; not shrouded or capped design.<br /></li></ul><p>&nbsp;</p>
