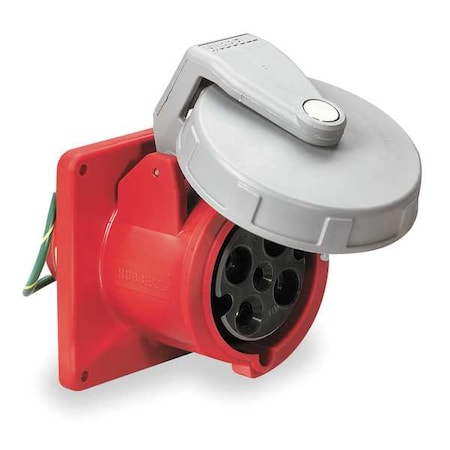

Watertight Pin & Sleeve Receptacle, 60 A, 480V AC, Three Phase, 4 Pole, IEC Grounding, Red, NEMA 4X

Description

<p>The HUBBELL IEC Pin and Sleeve Receptacle is rated for 60 amps and 480V AC in three-phase systems. Constructed with a Zytel 101 nylon body and housing, this receptacle offers resistance to impact, moisture, and high temperatures. It features a flanged design with screw terminal wire connections suitable for wire sizes from 8 AWG to 2 AWG. The unit meets IP67 and NEMA 4X enclosure ratings, making it suitable for demanding environments where protection against water ingress is required.</p><br /><br /><p>Key Features of the HUBBELL IEC Pin &amp; Sleeve Receptacle:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 60A at 480V AC (three-phase)</li><br /><li>Body/Housing Material: Zytel 101 nylon</li><br /><li>Ingress Protection: IP67 rating; NEMA Enclosure Type 4X</li><br /><li>Cord Size Compatibility: Accepts wire sizes from 8 AWG to 2 AWG</li><br /><li>Operating Temperature Range: -40°C to +75°C</li><br /><li>Number of Poles/Wires: Four poles, five wires configuration</li><br /><li>Connection Orientation: Straight; screw terminal connection type</li><br /><li>Flange/Gasket Materials: Flanged design with neoprene gasket for watertight sealing</li><br /><li>Resistance Properties: Constructed from materials rated as impact resistant, moisture resistant, watertight per applicable standards</li></ul><p>&nbsp;</p>
