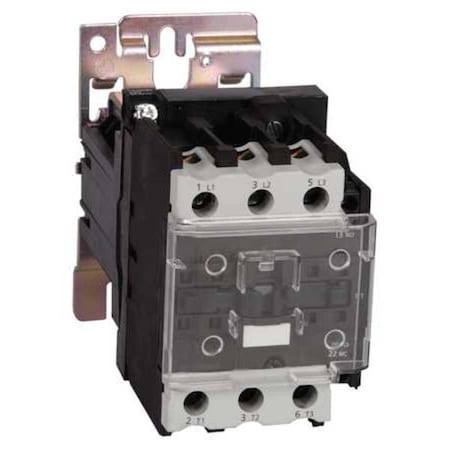

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing

Description

<p>The DAYTON IEC Magnetic Contactor is a 3-pole, non-reversing, IEC-style electromagnetic switch rated for controlling power circuits within specified parameters. It includes auxiliary contacts (1NO/1NC) and a 24 V DC coil; dimensions are provided for reference. Rated to operate within the specified frequency range of 50/60 Hz and has no embedded surge suppressor. It has maximum current ratings of up to 65 A inductive and 80 A resistive at full load under specified conditions and complies with CSA and UL standards.</p> <p>- Poles: 3</li> <li>- Action / Reversing: Non-Reversing</li> <li>- Coil Voltage: 24 V DC</li> <li>- Auxiliary Contacts: 2 (1NO/1NC)</li> <li>- Embedded Surge Suppressor: No</li> <li>- Enclosure: No Enclosure</li> <li>- Frequency: 50/60 Hz</li> <li>- Full Load Amps: Inductive 65 A; Resistive 80 A</li> <li>- HP Ratings: 5 hp @ 120V; 10 hp @ 230V; 10 hp @ 240V; 20 hp @ 208V; 20 hp @ 240V; 50 hp @ 480V; 50 hp @ 575V</li> <li>- Dimensions (W x H x D): 2.95 in x 2.95 in x 6.73 in</li> <li>- Standards: CSA, UL Listed</li></ul></p>
