Dayton

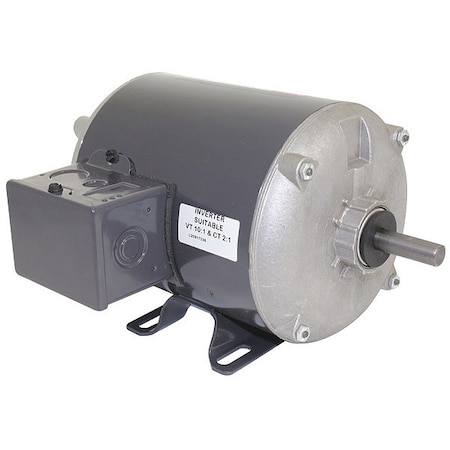

Three-Phase General Purpose Motor, 1/3 HP, 48 Frame, 208-230/460V AC Voltage, 3,450 Nameplate RPM
SKU: IM-2809676 · MPN: 3N854 · UPC: 190735292761
$374.39
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Non-Ventilated Motor Enclosure Design, 1/3 HP, Nameplate RPM 3,450, Frame 48, Voltage 208-230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.2-1.1/0.60 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 72 Percent, Continuous Duty, 3001-3600
Specifications
| Brand | Dayton |
|---|---|
| MPN | 3N854 |
| UPC | 190735292761 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 30.0 lb |
