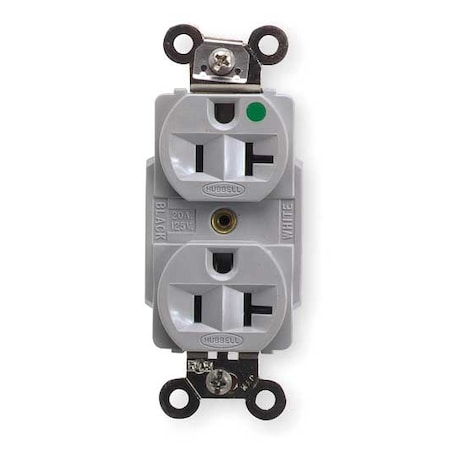

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 20A Duplex Receptacle 125VAC 5-20R GY is a Hospital grade electrical receptacle rated for use in specified applications. This duplex outlet features a deep body with an impact resistant thermoplastic polyester face and is rated for 20 amps at 125 volts AC. It includes both back and side wired screw terminals to accommodate #12–#10 AWG copper wire, supporting flexible installation options in flush mount applications.</p><br /><br /><p>Key Features of the HUBBELL 20A Duplex Receptacle:<br><br /></p><ul><br /><li>Hospital Grade: Meets UL requirements for hospital grade devices; intended for use in designated areas.</li><br /><li>Contact Design: Nickel-plated brass bypass contacts</li><br /><li>Grounding System: Four-point grounding</li><br /><li>Impact Resistance: Deep face design constructed with impact resistant thermoplastic polyester</li><br /><li>Circuit ID Marking Area: Circuit ID marking area</li><br /><li>Wiring Options: Back and side wired screw terminals accept #12–#10 AWG stranded or solid copper wire</li><br /><li>NEMA Configuration: NEMA 5-20R, single phase, two-pole, three-wire grounded configuration</li><br /><li>Operating Temperature Range: Operating temperature range: -40°F to 167°F (-40°C to +75°C)</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, NEMA WD-6, UL 498 File E2186 standards.</li></ul><p>&nbsp;</p>
