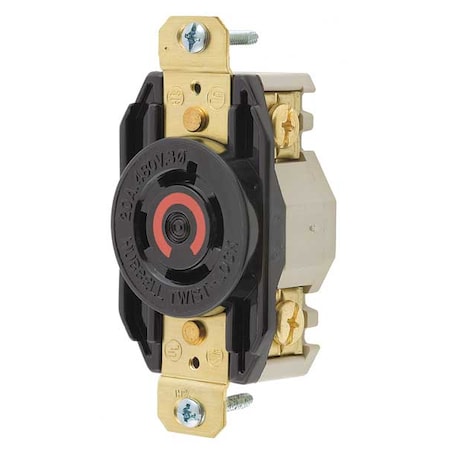

Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 20A Twist-Lock Receptacle L16-20R is a locking receptacle intended for use in industrial settings, rated for 20 amps and 480V AC in three-phase applications. It features a twist-lock mechanism provides a locking connection and is suitable for indoor, dry locations where reliable power delivery is required. The device supports both back and side wiring with screw terminals, accommodating #16 AWG to #8 AWG solid or stranded copper wire.</p><br /><br /><p>Key Features of the HUBBELL 20A Twist-Lock Receptacle L16-20R:<br><br /></p><ul><br /><li>NEMA Configuration: L16-20R (3-pole, 4-wire)</li><br /><li>Voltage/Current Rating: Rated for 480V AC, 20 A</li><br /><li>Wiring Style: Standard wiring with wire restraint recess at terminals reduces terminal loosening</li><br /><li>Material Construction: Housing made from nylon; contacts and spring are brass</li><br /><li>Mounting Type: Flush mount; includes mounting hardware</li><br /><li>Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous)</li><br /><li>Coding &amp; Identification: Face color coding by voltage aids correct mating of devices</li><br /><li>Grounding System: All-brass mounting and grounding system features corrosion resistance</li><br /><li>Screw Terminals accept #16–#8 AWG copper wire only</li><br /><li>Standards Compliance: UL 498 listed, CSA Certified C22.2 No.42, Federal Specification W-C-596 compliant</li></ul><p>&nbsp;</p>
