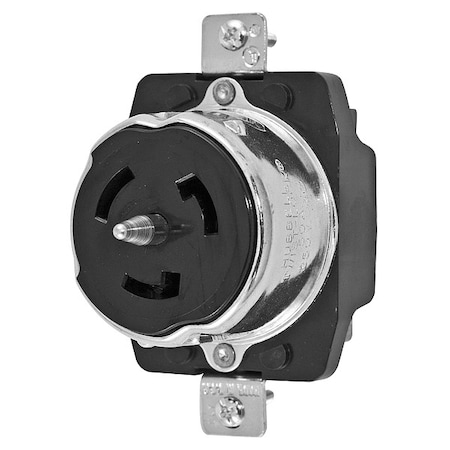

Locking Receptacle, Non-NEMA, 50 A, 250V AC, Three Phase, 3 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 50A Twist-Lock Receptacle is a locking receptacle suitable for industrial applications, rated for 50 amps and 250V AC. It features a twist-lock mechanism with three poles and four wires, providing connections in indoor environments. The device has a flush mount design and is constructed from impact-modified PBT with a phenolic housing.</p><br /><br /><p>Key Features of the HUBBELL 50A Twist-Lock Receptacle:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 50 amps at 250V AC, suitable for high-capacity electrical systems.</li><br /><li>Lock Type: Twist-lock configuration is intended to help reduce the likelihood of accidental disconnection.</li><br /><li>Construction: Impact modified PBT body with phenolic housing has UL 94 V-0 flammability rating.</li><br /><li>Wire Accommodation: Accepts wire sizes from #10 AWG minimum to #6 AWG maximum; screw terminal connections.</li><br /><li>NEMA Configuration &amp; Ratings: NEMA enclosure ratings: 1, 4, 4X, and 12</li><br /><li>Operating Temperature Range: Rated operating temperature range: -40°F to +167°F (-40°C to +75°C continuous).</li><br /><li>Mounting Type: Can be flush mounted into panels or wall boxes as required by application needs.</li><br /><li>Standards Compliance: Complies with UL 498 and CSA C22.2 No.42 standards.</li></ul><p>&nbsp;</p>
