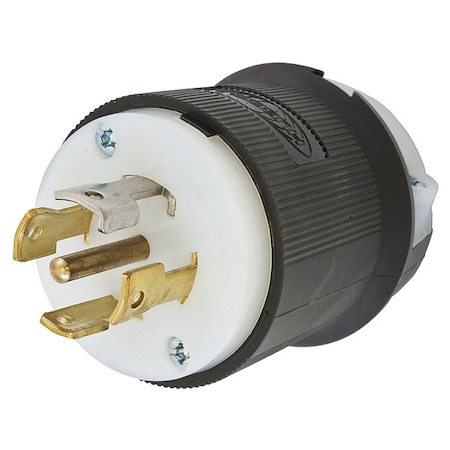

Locking Plug, L21-30P, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 30A Twist-Lock Plug L21-30P is a locking plug rated for use in industrial applications and intended to facilitate electrical connections in indoor dry locations. It features a ribbed nylon housing intended to improve handling during installation or removal; constructed from materials rated for impact and chemical resistance. The integral dust shield is intended to limit dust intrusion into the wiring chamber.</p><br /><br /><p>Key Features of the HUBBELL 30A Twist-Lock Plug L21-30P:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 30 A and 120/208V AC, suitable for three-phase power systems.</li><br /><li>NEMA Configuration: L21-30P with 4 poles and 5 wires, grounded design.</li><br /><li>Cord Accommodation: Accepts cord diameters from 0.350" to 1.150"; compatible with all listed portable cords.</li><br /><li>Wire Size Range: Supports #16 AWG to #8 AWG stranded copper wire using screw terminals.</li><br /><li>Housing Material: Nylon construction provides chemical and impact resistance; ribbed exterior facilitates handling during installation or removal.</li><br /><li>Operating Temperature Range: Rated for operation between -40°C (without impact) up to a maximum continuous temperature of 75°C.</li><br /><li>Dielectric Strength &amp; Flammability: Rated dielectric strength: minimum 2,000V; flammability rating: HB per UL94/CSA standards.</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, and UL 498 requirements.</li><br /><li>Additional Protection: Integral dust shield limits dust intrusion into internal wiring</li></ul><p>&nbsp;</p>
