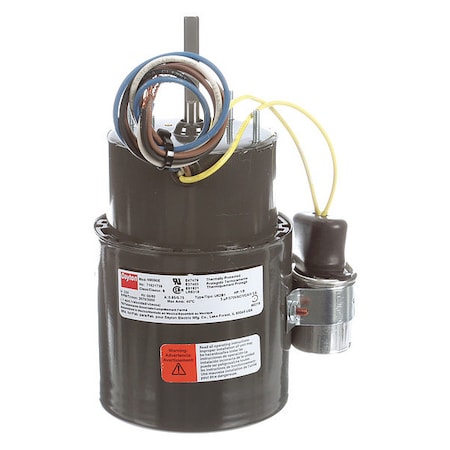

HVAC Motor,1/8 HP,3000 rpm,230V,3.3

Description

HVAC Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/8 hp HP, Nameplate RPM 3,000 RPM, No. of Speeds 1, Voltage 230V AC, 0.60 A Full Load Amps, 3.3 Frame, Output Watts 93 W, 60/50 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Mounting Type Stud
