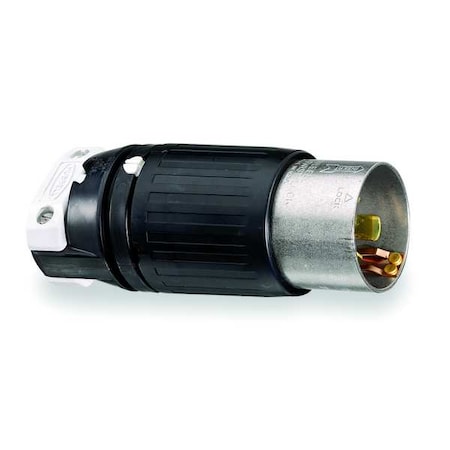

Locking Plug, Non-NEMA, 50 A, 250/600V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 50A Twist-Lock Plug is a locking plug with twist-lock engagement intended for industrial electrical connections. It features a nylon housing and brass blades; intended for indoor use in dry locations. The plug accommodates cord sizes from 0.750 to 1.125 inches and supports wire sizes ranging from 8 AWG to 4 AWG, with screw terminal connections.</p><br /><br /><p>Key Features of the HUBBELL 50A Twist-Lock Plug:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 50 A at up to 600V AC or 250V DC</li><br /><li>Number of Poles/Wires: Three poles and four wires</li><br /><li>Housing Material: Nylon housing; impact and chemical resistance per manufacturer specifications</li><br /><li>Blade Material: Brass blade material</li><br /><li>Cord Size Range: Accepts cords from 0.750 in to 1.125 in diameter (maximum cable diameter up to 1.25 in)</li><br /><li>Wire Size Compatibility: Supports minimum wire size of 8 AWG and maximum of 4 AWG</li><br /><li>Operating Temperature Range: -40°C minimum to +75°C maximum continuous operation</li><br /><li>NEMA Configuration: Non-NEMA; polarized design with shrouded construction</li><br /><li>Screw Terminals: screw terminal connections</li><br /><li>Standards Compliance: CSA Certified C22.2 No.42, UL498; UL94 HB flammability rating; IP20 rated enclosure</li></ul><p>&nbsp;</p>
