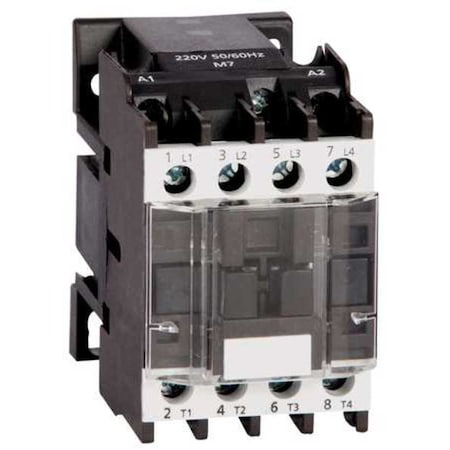

IEC Magnetic Contactor, No Auxiliary Contacts, 120V AC, 4 P, Non-Reversing, Screw

Description

<p>DAYTON IEC Magnetic Contactor is a 4-pole, coil-driven switching device designed under the IEC style. It operates with a 120 V AC coil and is non-reversing with screw terminals. The unit includes auxiliary contacts (4) and a main contact configuration of 2NC/2NO. It has no embedded surge suppressor and no enclosure, and is rated for operation within the specified frequency ranges; complies with CSA and UL standards.</p> <p>- Contactor style: IEC; Item: IEC Magnetic Contactor</li> <li>- Poles: 4</li> <li>- Coil voltage: 120 V AC</li> <li>- Action/Reversing: Non-Reversing; Reversing: No</li> <li>- Auxiliary contacts: Yes (4 total); Main contact configuration: 2NC/2NO</li> <li>- Terminal connection: Screw</li> <li>- Enclosure: No Enclosure; Embedded surge suppressor: No</li> <li>- Enclosure rating: No Enclosure</li> <li>- Dimensions (D x W x H): 3.18 in depth; 1.77 in width; 1.77 in height</li> <li>- Frequency: 50/60 Hz</li> <li>- Full Load Amps: Inductive 12 A; Resistive 25 A</li> <li>- Full Load Current: Inductive 12 A; Resistive 25 A</li> <li>- Horsepower (Single Phase): 120V 1 hp; 230V 2 hp; 240V 2 hp</li> <li>- Standards: CSA, UL Listed</li></ul></p>
