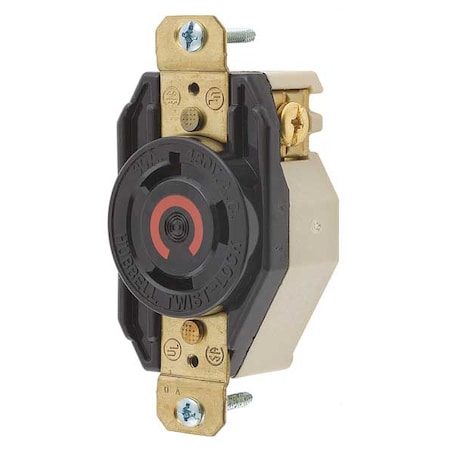

Locking Receptacle, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

Description

<p>The HUBBELL 30A Twist-Lock Receptacle L8-30R is a locking receptacle rated for use in indoor, dry locations. It features a twist-lock mechanism intended to reduce the likelihood of accidental disconnection and supports single-phase, 480V AC circuits with a current rating of 30 amps. The device accommodates both back and side wiring with wire restraint recesses.</p><br /><br /><p>Key Features of the HUBBELL 30A Twist-Lock Receptacle L8-30R:<br><br /></p><ul><br /><li>NEMA Configuration: L8-30R; two-pole, three-wire systems at 480V AC.</li><br /><li>Current/Voltage Rating: Rated for operation at 480V AC single phase with a maximum current rating of 30 amps.</li><br /><li>Wire Size Compatibility: Accepts #16 AWG to #8 AWG solid or stranded copper wire only.</li><br /><li>Mounting Type: Flush mount design; includes mounting hardware.</li><br /><li>Material Construction: Housing material: nylon polyester and PBT; contact and spring materials: brass.</li><br /><li>Operating Temperature Range: -40°F to 167°F (-40°C to +75°C continuous operation).</li><br /><li>Flammability Rating: UL 94 V-2 or better; meets CSA C22.2 No.0.6 standards.</li><br /><li>Grounding &amp; Polarization: Grounded and polarized; terminals identified per UL 498 (X, Y, Z, White, Green).</li><br /><li>Screw Terminal Connections: Standard wiring style using screw terminals for reliable attachment.</li><br /><li>NEMA Enclosure/IP Rating: NEMA Type 1 enclosure rated IP20—intended for indoor use only in dry environments.</li></ul><p>&nbsp;</p>
