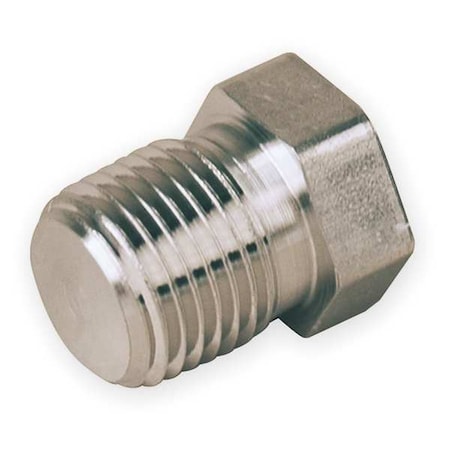

1/8" MNPT 316 SS Hex Head Plug

Description

<p>The PARKER - 2 PH-SS is a stainless steel hex head plug designed to close off the end of a pipe, fitting, or port with a threaded connection. It is constructed from 316L stainless steel with a bright finish; corrosion resistance and temperature tolerance are inherent to the material and it operates within the specified temperature range (-425°F to 1200°F). The plug has a nominal pipe size of 1/8 in and a solid construction, providing a pressure-tight seal when installed with appropriate sealing components and in accordance with standard installation practices. It connects via a 1/8 in -27 MNPT thread and is compatible with industrial standards ANSI B31.1, ANSI B31.3, and ANSI B1.20.1. Key Features:<br /> <ul><li>- Material: 316L stainless steel with bright finish</li><li>- Connection type: 1/8 in -27 MNPT threaded</li><li>- Nominal pipe size: 1/8 in</li><li>- Overall length: 9/16 in (0.56 in)</li><li>- Hex drive size: 7/16 in across flats</li><li>- Maximum operating pressure: 9,100 psi</li><li>- Maximum pressure rating: 9,700 psi</li><li>- Temperature range: -425°F to 1200°F</li><li>- Does not include pre-applied thread sealant or sealing components</li></ul></p>
