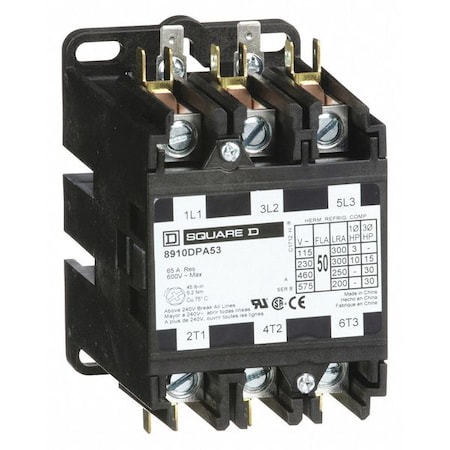

Definite Purpose Magnetic Contactor, 120V AC, 3 P, Non-Reversing, 3 Phase, Box Lug & Quick Connect

Description

<p>The SQUARE D - 8910DPA53V02 is a Definite Purpose Magnetic Contactor, an industrial electrical device designed to control the flow of power in heavy-duty applications. It operates by responding to electrical impulses, allowing or interrupting power supply based on the need. This tool is commonly used by industry professionals for managing and automating machinery operations in various sectors like HVAC, data processing, and manufacturing.</p><p><br/><ul><li>Action: Non-Reversing – The contactor functions with a constant current flow direction.</li><li>Coil Voltage: Rated for operation at a coil voltage of 120V AC.</li><li>Control Circuit Voltage: Specified for operation within the range of voltages including 120 V AC 60 Hz; 110 V AC 50 Hz.</li><li>Electrical Connection: Can be attached to an electrical circuit using box lugs or quick connect terminals.</li><li>Frequency Compatibility: Compatible with electrical cycles per second measured at frequencies of either 50/60 Hz</li><li>Amp Capacity: Rated to accommodate up to maximum currents of both Full Load Amps-Inductive (50 A) and Full Load Amps-Resistive (65 A).</li><li>Horsepower Control Range: Horsepower control varies based on phase and voltage levels, ranging from HP @ Single Phase - 120V AC (3 hp) up to HP @ Three Phase -600V AC (50 hp).</li><li>Pole Contact Composition: Contains three Normally Open contacts which determine how circuits are controlled during operation.</li></ul></p>
