Maxim

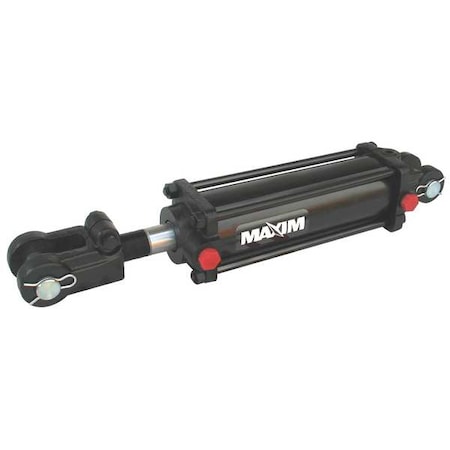

TC Tie-rod Hydraulic Cylinder: 3 Bore x 4 Stroke - 1.25 Rod

Name: TC Tie-rod Hydraulic Cylinder: 3 Bore x 4 Stroke - 1.25 Rod
Brand: Maxim
SKU: IM-2461812
Price: 177.59 USD
Availability: InStock

SKU: IM-2461812 · MPN: 218333

$177.59

Usually ships in 1–3 business days

Free shipping on orders $50.00+ · orders under $50.00 ship for $6.49

Qty

Description

Hydraulic Cylinder, Tie-Rod, Bore Dia. 3 in, Stroke Length 4 in, Rod Dia. 1 1/4 in, Retracted Length 14 1/4 in, Port Size 1/2 in NPT, Extended Length 18 1/4 in, Max. Pressure 2,500 psi, Temp. Range -20 Degrees to 220 Degrees F, Piston Material Ductile Iron, Tube Material Precision Honed Steel, Tie Rods High Tensile, Finish Black, Includes Pins and Clips, Pin Dia. 1 in
