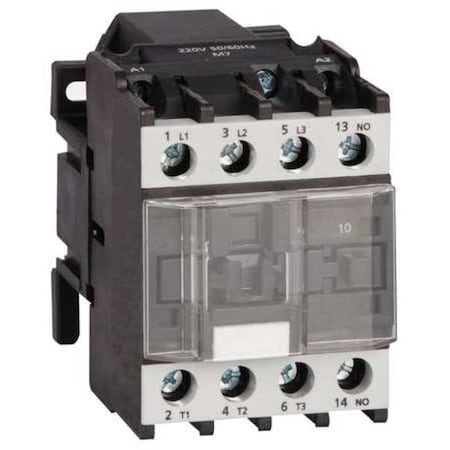

IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing

Description

<p>The DAYTON IEC Magnetic Contactor, 1NO, 24V AC, 3 P, Non-Reversing is an IEC-style, electrically operated switching device used to control power circuits. It uses an electromagnetic coil to open or close the main contacts, and is configured for 3 poles with a 24 V AC coil. This model includes 1 normally open auxiliary contact and has no embedded surge suppressor or enclosure. It is rated for operation within the specified frequency ranges and complies with recognized safety standards. Its dimensions are 3.18 in deep, 1.77 in wide, and 1.77 in high. Reversing capability is not supported.</p> <p>- Action: Non-Reversing</li> <li>- Poles: 3</li> <li>- Coil Voltage: 24 V AC</li> <li>- Auxiliary Contacts: 1NO</li> <li>- Auxiliary Contact Form: 1NO</li> <li>- Includes Auxiliary Contacts: Yes</li> <li>- Embedded Surge Suppressor: No</li> <li>- Enclosure: No Enclosure</li> <li>- Frequency: 50/60 Hz</li> <li>- Full Load Amps (Inductive/Resistive): 12 A / 25 A</li> <li>- Full Load Current (Inductive/Resistive): 12 A / 25 A</li> <li>- HP @ Single Phase: 120V = 1 hp; 230V = 2 hp; 240V = 2 hp</li> <li>- HP @ Three Phase: 208V = 3 hp; 240V = 3 hp; 480V = 7 1/2 hp; 575V = 10 hp</li> <li>- Standards: CSA, UL Listed</li> <li>- Height: 1.77 in</li> <li>- Width: 1.77 in</li> <li>- Depth: 3.18 in</li> <li>- Item: IEC Magnetic Contactor</li></ul></p>
