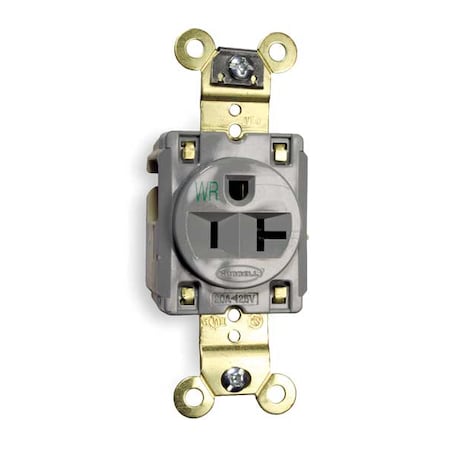

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL HBL5262 is a single, flush mount industrial receptacle rated for 20A and 125V AC. Rated for use in heavy duty applications, it features a traditional face with Finder Groove style and is intended for installation in demanding environments. This NEMA 5-20R outlet supports both back and side wiring methods, accommodates #12 to #10 AWG copper conductors, and includes mounting hardware.</p><br /><br /><p>Key Features of the HUBBELL HBL5262 Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20A at 125V AC</li><br /><li>NEMA Configuration: 5-20R single outlet</li><br /><li>Mounting Type: Flush mount with included hardware</li><br /><li>Wiring Method: Back or side wired screw terminals; accepts #12–#10 AWG copper wire</li><br /><li>Material Construction: Nylon face with reinforced PET base; nickel-plated brass contacts</li><br /><li>Weather Resistant: Rated for use in weather-resistant installations</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Certifications &amp; Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), Federal Specification W-C-600, NEMA WD-6 compliant</li><br /><li>Dielectric Strength &amp; Flammability Rating: Withstands minimum 2,000V; UL94 V-2 flammability rating</li></ul><p>&nbsp;</p>
