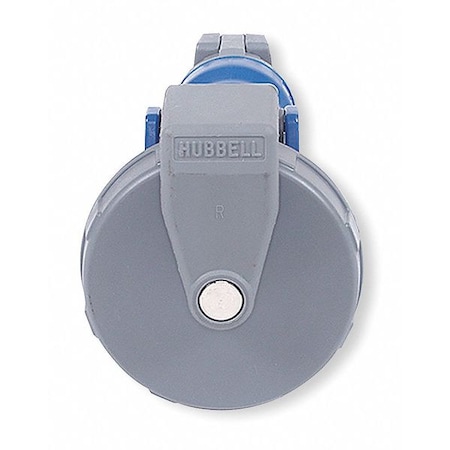

Watertight Pin & Sleeve Connector, 60 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X

Description

<p>The HUBBELL IEC Pin and Sleeve Connector is a watertight electrical connector intended for use in industrial settings where high-capacity power connections are specified. Rated for 60A and 250V AC in three-phase systems, this connector features a rugged Zytel 801 nylon body with an insulated non-metallic housing. It supports cable diameters from 0.5 to 1.45 inches and accommodates wire sizes from 8 AWG to 2 AWG using screw terminals.</p><br /><br /><p>Key Features of the HUBBELL IEC Pin and Sleeve Connector:<br><br /></p><ul><br /><li>Current/Voltage Rating: Rated for 60 amps at 250V AC; refer to application requirements to determine suitability.</li><br /><li>Watertight Construction: IP68/IP69K rated with NEMA Type 4X enclosure.</li><br /><li>Material: Body constructed from Zytel 801 nylon; housing made of PBT with V-0 flammability rating per UL94.</li><br /><li>Cable Accommodation: Accepts cables between 0.5 in and 1.45 in diameter; supports wire sizes from #8 AWG up to #2 AWG.</li><br /><li>Connection Orientation: Straight connection design with shrouded contacts for added protection.</li><br /><li>Grounding Style: IEC grounding configuration; grounded device with four wires (three poles).</li><br /><li>Cord Grip &amp; Cover: External cord grip is included for strain relief; spring-loaded self-closing gasketed cover is present on the device.</li><br /><li>Color Coding &amp; Identification: Blue color-coded housing as part of the HBL Heavy Duty series.</li><br /><li>Temperature Range: Operates within -40°C to +75°C temperature range.</li><br /><li>Standards Compliance: CSA Certified LR280C, UL Classified to IEC standards (60309-1/60309-2), UL E146033 listed product.<br /></li></ul><p>&nbsp;</p>
