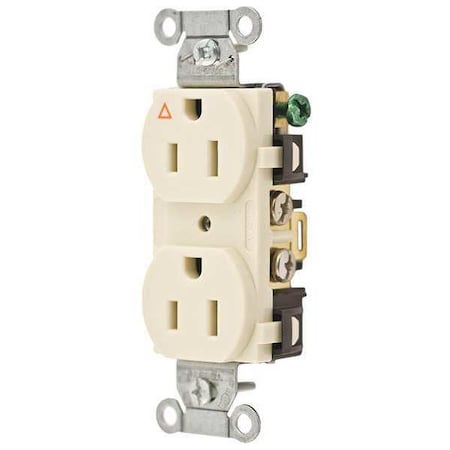

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount

Description

<p>The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a traditional duplex isolated ground receptacle suitable for use in commercial specification grade applications. It features a smooth nylon face and is rated for 15 amps at 125 volts AC, with side-wired screw terminals for secure connectivity. The isolated ground design separates the grounding contacts from the mounting strap, which can help reduce electrical noise in sensitive installations.</p><br /><br /><p>Key Features of the HUBBELL 15A Duplex Receptacle:<br><br /></p><ul><br /><li>Isolated Ground: Triangle marking on face indicates an isolated ground configuration to separate equipment grounding from conventional system grounding.</li><br /><li>Electrical Ratings: Rated for 15 A, 125 V AC; supports up to #10 AWG copper wire.</li><br /><li>Construction: Components include nylon base and face with brass power and ground contacts; corrosion resistant components.</li><br /><li>Mounting Type: Flush mount with galvanized steel mounting strap and included hardware.</li><br /><li>NEMA Configuration: Standard NEMA 5-15R duplex outlet (2-pole, 3-wire).</li><br /><li>Certifications: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification W-C-596, NEMA WD-6 compliant.</li><br /><li>Performance: Dielectric voltage rating: minimum 2,000V; flammability rating UL94 V-2; operating temperature range -40°C to +75°C (without impact).</li></ul><p>&nbsp;</p>
