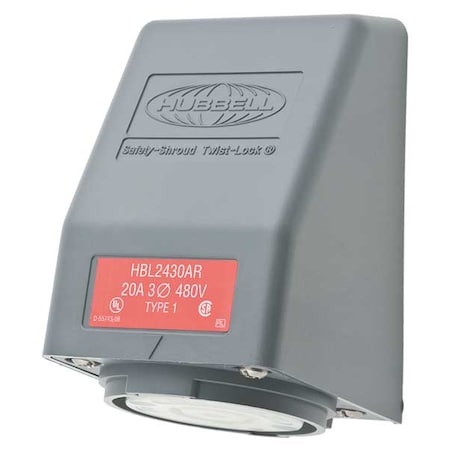

Flanged Locking Receptacle, L16-20R, 20 A, 480V AC, Three Phase, 3 Pole, Flush Mount, Gray

Description

<p>The HUBBELL 20A Angle Twist-Lock Receptacle (L16-20R) is a flanged locking receptacle intended for use in industrial electrical connections utilizing a twist-lock mechanism. Rated for 20 amps and 480V AC in three-phase applications, this device features a flush mount design with a rectangular flange and is suitable for indoor use in dry locations. The engineered thermoplastic housing provides resistance to impact and corrosion, making it compatible with demanding industrial settings.</p><br /><br /><p>Key Features of the HUBBELL 20A Angle Twist-Lock Receptacle:<br><br /></p><ul><br /><li>NEMA Configuration: L16-20R; three-pole, four-wire grounding</li><br /><li>Current/Voltage Rating: 20 A, 480V AC; phase: three</li><br /><li>Contact Material: Brass contacts; see product specifications for performance details</li><br /><li>Wire Size Compatibility: Accepts #16 AWG to #8 AWG solid or stranded copper wire only</li><br /><li>Operating Temperature Range: -40°F to 167°F (-40°C minimum without impact)</li><br /><li>Mounting Type: Flush mount with shrouded design and locking cover</li><br /><li>Housing/Flange Material: Impact- and corrosion-resistant Valox thermoplastic; steel/Rynite construction</li><br /><li>Terminal Designations: Terminals identified per UL 498 (X, Y, Z, White, Green)</li><br /><li>Screw Terminal Wire Connections; polarized configuration assists with correct mating alignment</li><br /><li>NEMA Enclosure Rating: Type 1; IP Rating: IP20 (for indoor use)</li><br /><li>Standards Compliance: CSA Certified C22.2 No.42; Federal Specification W-C-596; UL 498 listed</li></ul><p>&nbsp;</p>
