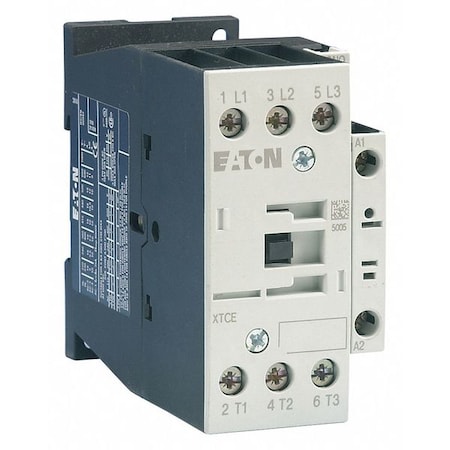

IEC Magnetic Contactor, 1NC, 208V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is an IEC magnetic contactor (Frame C) with 3 poles and a 208 V AC coil. It features screw terminal connections and includes one auxiliary contact (1NC).</p> <p>- Rated for operation at specified coil voltage of 208 V AC.</li> <li>- Includes auxiliary contacts as specified.</li> <li>- Electrical connection via screw terminals.</li> <li>- Compatible with DIN rail or panel mounting methods.</li> <li>- Designed for indoor use with IP20 enclosure rating.</li> <li>- Suitable for operation at the specified frequency of approximately 60 Hz.</li> <li>- Rated to withstand voltages up to the specified maximum voltage rating (690 V AC).</li> <li>- Mechanical durability rated at approximately 10,000,000 cycles under normal conditions.</li> <li>- Electrical Operating Durability: 300 (AC-4 400V Ie); 800 (AC-1 400V Ie); 800 (AC-3 400V Ie)</li> <li>- Certifications/Compliance: EN 60947; CSA Certified; IEC 60947; UL Listed; CE Marked; RoHS</li></ul></p>
