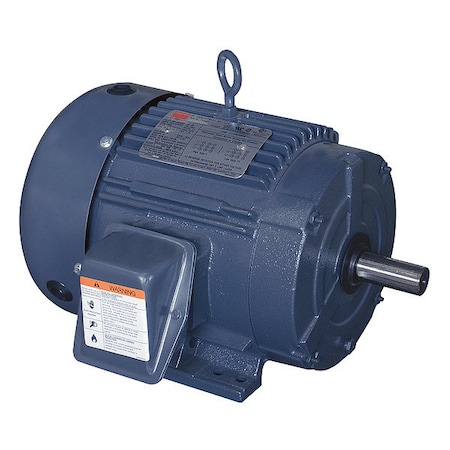

Three-Phase General Purpose Motor, 1 1/2 HP, 182T Frame, 230/460V AC Voltage, 1180 Nameplate RPM

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1180, Frame 182T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.7/2.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1,101-1,200, CE, CSA, UL
