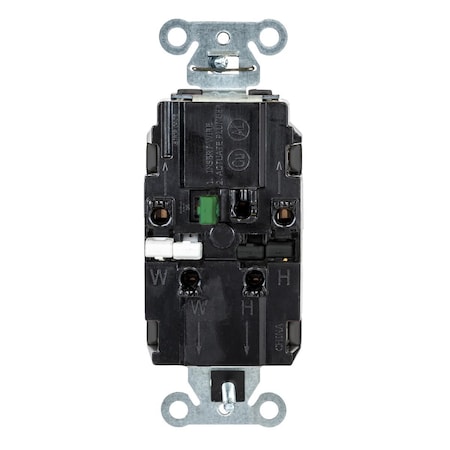

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

Description

<p>The HUBBELL EdgeConnect™ Duplex Straight Blade Receptacle is an electrical outlet rated for use in indoor, dry locations. It features a screwless push-in wire termination system compatible with tool-free installation.</p><br /><br /><p>Key Features of the HUBBELL EdgeConnect™ Duplex Straight Blade Receptacle:<br><br /></p><ul><br /><li>Wire Connection Type: Push-in back wiring with screwless spring termination intended to maintain secure connections during installation.</li><br /><li>NEMA Configuration: 5-20R, suitable for standard single-phase power distribution.</li><br /><li>Current/Voltage Rating: Rated for 20 A at 125V AC; supports motor loads up to 1 hp.</li><br /><li>Tamper Resistant: Designed with resistance properties to help prevent unintended access or insertion into the slots.</li><br /><li>Grounded: Grounded configuration compatible with grounded circuits.</li><br /><li>Contact Material: Copper alloy contacts used in construction of device.</li><br /><li>Face Plate Dimensions: Height of 2.8 in and width of 1.6 in; overall depth of 1.4 in; mount hole center-to-center height is 3.3 in.</li><br /><li>Circuit Tab Access: Easy access split circuit tab enables flexible wiring options as needed by installers.</li><br /><li>Standards Compliance: CSA Certified (22.2 No 42 File 285), NEMA WD-6, UL Listed (UL498 File No E2186).</li><br /><li>Operating Temperature Range: Suitable for environments from -40°F to +167°F; accepts wire sizes from #14 AWG to #10 AWG.</li></ul><p>&nbsp;</p>
