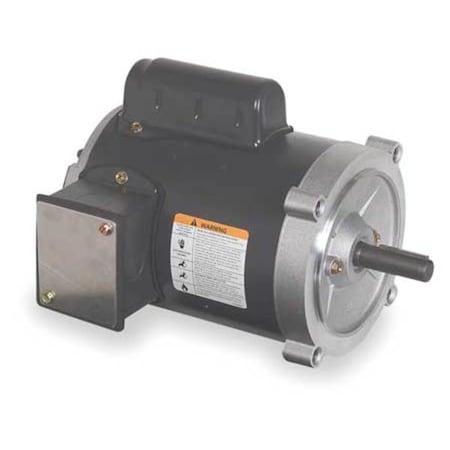

Capacitor-Start General Purpose Motor, 1/3 hp HP, 115/208-230V AC Voltage, 56C Frame

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/3 hp HP, Nameplate RPM 3,460 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.3/2.5-2.2 A, 56C Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Totally Enclosed Non-Ventilated, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
