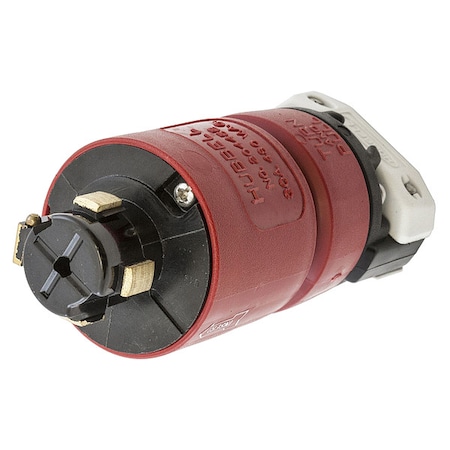

Locking Plug, Non-NEMA, 30 A, 480V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 30A Locking Plug 3P 4W 480VAC RD is an industrial-grade locking plug intended for use in industrial environments requiring locking plug configurations. It features a nylon housing for impact resistance and uses screw terminals compatible with #10 AWG to #6 AWG stranded copper wire. Molded-in brass male contacts are integrated into the nose.</p><br /><br /><p>Key Features of the HUBBELL - 30A Locking Plug:<br><br /></p><ul><br /><li>Amperage/Voltage Rating: Rated for 30 A at 480V AC</li><br /><li>Configuration: Non-NEMA, four blades; three poles, four wires; grounded</li><br /><li>Cable Range: Accepts cables from 0.700" to 1.200" diameter</li><br /><li>Wire Size Compatibility: Supports #10 AWG to #6 AWG stranded copper wire</li><br /><li>Nylon body construction</li><br /><li>Connection Type: Screw terminals with pressure pads enhance termination strength</li><br /><li>Molded-In Contacts: Brass male contacts are integrated into the nose</li><br /><li>Strain Relief: Three-piece clamp assembly designed to help limit strain, moisture, and dust entry at connection point</li><br /><li>Operating Temperature Range: Suitable for continuous use from -40°C to +75°C (without impact)</li><br /><li>Flammability Rating &amp; Standards Compliance: UL94 V-0 flammability rating; CSA Certified; UL Listed</li></ul><p>&nbsp;</p>
