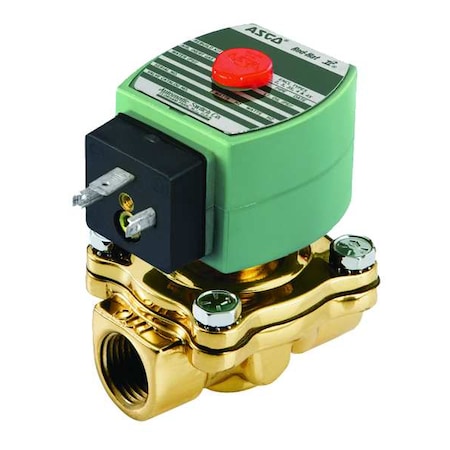

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 120V AC, High Flow, Brass

Description

<p>The ASCO SC8210G002 is a pilot-operated, normally closed solenoid valve engineered for automated control of fluid and gas flow. Constructed with a brass body and NBR seals, it accommodates air, inert gases, light oil, and water with a maximum fluid temperature of 180°F. This valve is designed with a 5/8 inch orifice and a nominal pipe size of 1/2 inch, featuring NPTF inlet and outlet connections. Its 2-way/2-position configuration supports flow control by opening or closing the path via an energized solenoid coil, which is included. Mounting is recommended in a vertical orientation.</p> <p>Key Features: <ul><li>- Operating ambient temperature range: 14°F to 140°F</li> <li>- Maximum Operating Pressure Differential: 200 psi for Air/Inert Gas, 135 psi for Light Oil, 150 psi for Water</li> <li>- Minimum Operating Pressure Differential: 5 psi for Air/Inert Gas, Light Oil, and Water</li> <li>- Coil Insulation Class: F; Wattage: 6.1 W; Voltage: 120V AC; Frequency: 50 Hz, 60 Hz</li> <li>- Coil Enclosure is IP66-rated watertight; no external junction box required; Electrical Connections: 1/2 in Conduit Hub</li> <li>- Enclosure rated for indoor and outdoor use (IP66)</li> <li>- Valve Design: 2-Way/2-Position; Valve Type: High Flow; Valve Starting Configuration: Normally Closed</li> <li>- Response time: 1 second (typical per specification)</li> <li>- Overall Dimensions: Height 3-5/16 in, Length 3 in, Width 2-5/16 in; Center Line Pipe Size: 2-13/16 in</li> <li>- Includes Coil and Seal; Seal Material: NBR</li></ul></p>
