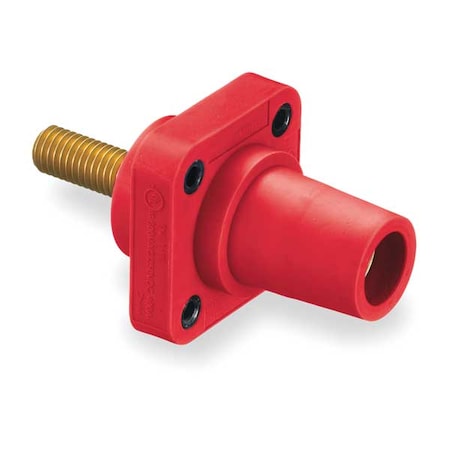

Receptacle,3R, 4X, 12K,Stud,Red

Description

<p>The HUBBELL Receptacle, Series 16, is a single pole panel mount receptacle rated for high ampacity electrical connections. This female stud-type device accommodates #4 AWG to 4/0 AWG wire sizes and is rated for up to 400A at 600V AC or 250V DC. Constructed with a thermoplastic elastomer housing and brass contacts, it is intended for indoor installation where additional protection may be required.</p><br /><br /><p>Key Features of the HUBBELL Series 16 Panel Mount Receptacle:<br><br /></p><ul><br /><li>Amperage Rating: Rated for up to 400A (AC/DC)</li><br /><li>Voltage Rating: Up to 600V AC / 250V DC</li><br /><li>Connection Type: Threaded stud terminal connection; straight orientation</li><br /><li>Cable Accommodation: Accepts wire sizes from #4 AWG to 4/0 AWG</li><br /><li>Housing Material: Thermoplastic elastomer construction with brass conductor/contact material</li><br /><li>NEMA Enclosure Ratings: Types 3R, 4X, and 12K—panel mount design</li><br /><li>Mounting Style: Through hole mounting; square flange shape</li><br /><li>Standards Compliance: ANSI/NFPA 70 (NEC), UL Listed, cUL Listed, UL Enclosure Types 3R/4X/12 compliant</li></ul><p>&nbsp;</p>
