Leeson

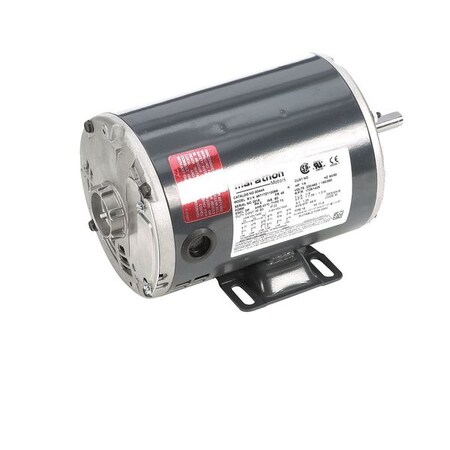

Three-Phase General Purpose Motor, 1/4 HP, 48 Frame, 230/460V AC Voltage, 1,725 Nameplate RPM
SKU: IM-2002485 · MPN: 048T17D11009
$315.59
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 1/4 HP, Nameplate RPM 1,725, Frame 48, Voltage 230/460V AC, 60/50 Hz Hz, Three Phase, Full Load Amps 1.0/0.50 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.35, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 69.5 Percent, Continuous Duty, 1701-1800, CE, CSA, UL Recognized
Specifications
| Brand | Leeson |
|---|---|
| MPN | 048T17D11009 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 18.0 lb |
