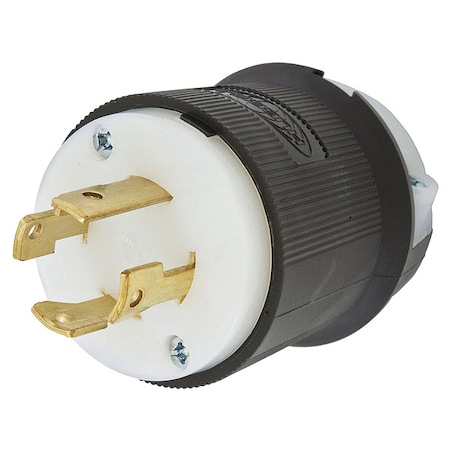

Locking Plug, L15-30P, 30 A, 250V AC, Three Phase, 3 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 30A Twist-Lock Plug (L15-30P) is a locking plug intended for use in industrial electrical connections where a locking mechanism is required. This three-phase, four-wire plug supports up to 30 amps at 250V AC and includes a polarized design with screw terminal wire connections. The housing is constructed from nylon housing.</p><br /><br /><p>Key Features of the HUBBELL 30A Twist-Lock Plug L15-30P:<br><br /></p><ul><br /><li>NEMA Configuration: L15-30P, three-pole, four-wire grounded</li><br /><li>Cord Size Compatibility: Accepts cable diameters from 0.35 in to 1.15 in; maximum wire size of 8 AWG and minimum of 16 AWG</li><br /><li>Material Construction: Nylon housing with brass blades for durability</li><br /><li>Operating Temperature Range: -40°C to +75°C</li><br /><li>Flammability Rating: UL94 HB or better per CSA/UL standards</li><br /><li>Horsepower Rating: Maximum rating of 3 hp</li><br /><li>Chemical &amp; Impact Resistance</li><br /><li>Standards Compliance: Meets CSA Certified C22.2 No.42, Federal Specification W-C-596, UL498 requirements</li></ul><p>&nbsp;</p>
