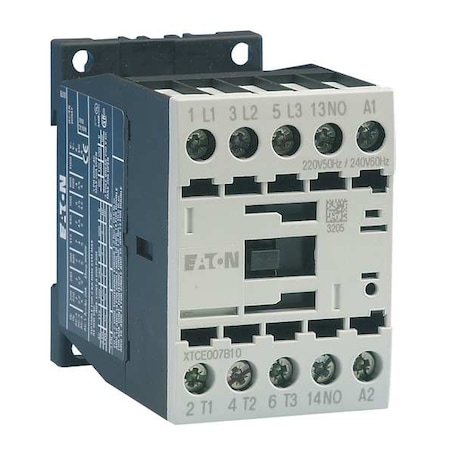

IEC Magnetic Contactor, 1NC, 24V DC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC contactor is a 3-pole, non-reversing IEC magnetic contactor with a 24 V DC coil. It includes one auxiliary contact (1NC) and uses screw terminals for wiring. It is part of the XT series with Frame B.</p> <p>Key features: <ul><li>- Coil Voltage: 24 V DC</li> <li>- Action / Reversing: Non-Reversing</li> <li>- Poles: 3</li> <li>- Contact Configuration: 1 NC</li> <li>- Aux Contacts: Includes 1 auxiliary contact (1NC)</li> <li>- Maximum Voltage Rating: 690 V AC</li> <li>- Full Load Amps: Inductive 15 A; Resistive 22 A</li> <li>- Electrical Operating Durability: 1,200,000 cycles (based on testing standards)</li> <li>- Mechanical Operating Durability: 10,000,000 cycles (based on testing standards)</li> <li>- Mounting Style: DIN Rail, Panel</li> <li>- Terminals: Screw</li> <li>- Frame/Series: XT, Frame B</li> <li>- Enclosure: No Enclosure; IP20</li> <li>- Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS</li> <li>- Response Time: DC opening <12 ms; AC opening <18 ms; AC closing <21 ms</li> <li>- Includes Auxiliary Contacts: Yes</li> <li>- Frame Size: B</li></ul></p>
