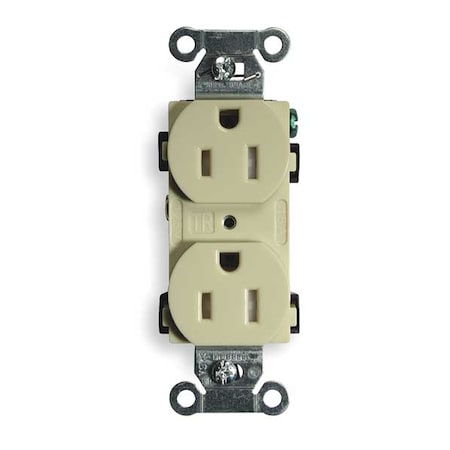

Duplex Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 15A Duplex Receptacle 125VAC 5-15R IV is a tamper-resistant duplex receptacle intended for indoor use. It features a smooth nylon face and wrap-around galvanized steel straps for added durability. This receptacle is grounded, rated for 15 amps at 125 volts AC, and supports both back and side wiring methods with screw terminals.</p><br /><br /><p>Key Features of the HUBBELL 15A Duplex Receptacle:<br><br /></p><ul><br /><li>Tamper Resistant: Integrated shutters are present on the device.</li><br /><li>Electrical Rating: Rated for 15A, 125V AC; NEMA configuration 5-15R.</li><br /><li>Material Construction: Nylon housing with brass power contacts and galvanized steel mounting strap.</li><br /><li>Wiring Compatibility: Accepts #14–#10 AWG copper stranded or solid conductors; supports back and side wiring methods.</li><br /><li>Mounting Type: compatible with single-gang applications; includes grounding staple and mounting hardware.</li><br /><li>Certification &amp; Standards: UL Listed (UL498), CSA Certified (C22.2 No.42), meets Federal Specification WC596G, NEMA WD-6 compliant.</li><br /><li>Operating Temperature Range: rated for operation within -40°F to +167°F (-40°C to +75°C).</li></ul><p>&nbsp;</p>
