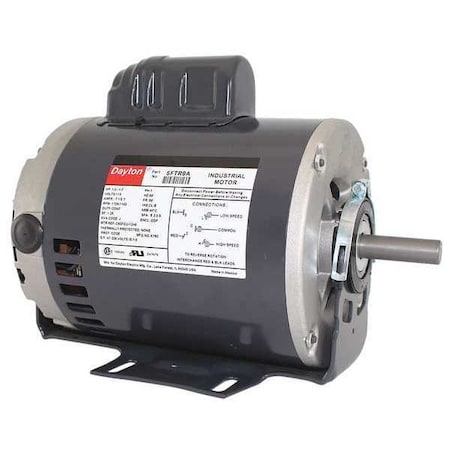

Capacitor-Start General Purpose Motor, 1/2 hp, 1/7 hp HP, 115V AC Voltage, 56 Frame

Description

General Purpose Motor, Single Phase, Motor Design Capacitor-Start, 1/2 hp, 1/7 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, Full Load Amps 7.1/3.7 A, 56 Frame, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class B, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Shaft Design Keyed
