Dayton

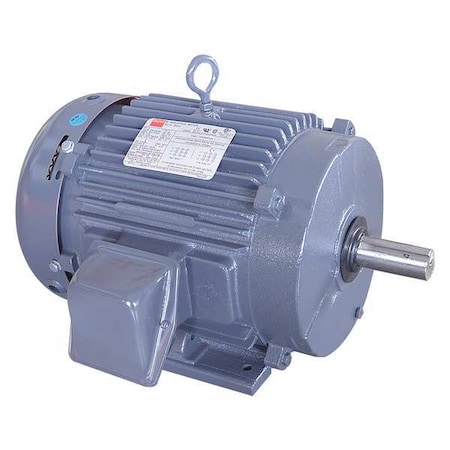

Three-Phase General Purpose Motor, 10 HP, 215T Frame, 230/460V AC Voltage, 1,770 Nameplate RPM
SKU: IM-1826596 · MPN: 194153.00 · UPC: 190735227664
$2,227.19
+ $100.00 freight surcharge (per unit)
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 10 HP, Nameplate RPM 1,770, Frame 215T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 25.8/12.9 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, Continuous Duty, 1701-1800, CE, CSA, UL
Specifications
| Brand | Dayton |
|---|---|
| MPN | 194153.00 |
| UPC | 190735227664 |
| Country of Origin | ZZ |
| Unit of Measure | EA |
| Shipping Weight | 222.0 lb |
