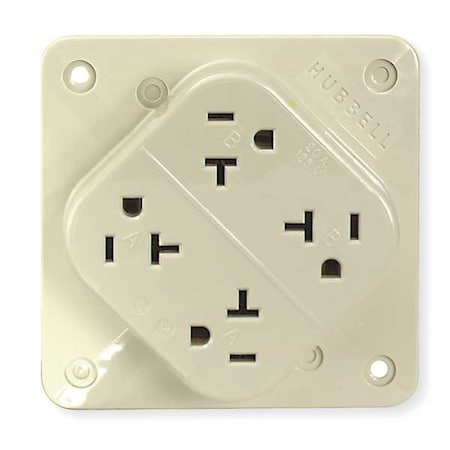

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Surface Mount, Grounded

Description

<p>The HUBBELL 4-PLEX Receptacle is a surface mount, quad outlet device rated for 20A and 125V AC. Suitable for commercial and industrial applications, it features four NEMA 5-20R outlets in a single unit, enabling connection of up to four devices. The receptacle uses screw terminals facilitate wiring and accommodates #12 AWG stranded or solid copper conductors.</p><br /><br /><p>Key Features of the HUBBELL 4-PLEX Receptacle:<br><br /></p><ul><br /><li>Outlet Configuration: Quad (four) NEMA 5-20R straight blade outlets</li><br /><li>Amperage/Voltage Rating: Rated for 20A, 125V AC</li><br /><li>Mounting Type: Surface mount design with included adapter plate and portable box</li><br /><li>Wiring Method: Back-wired using screw terminals; suitable for #12 AWG copper wire</li><br /><li>Contact Material: Brass triple wipe contacts provide reliable connectivity</li><br /><li>Grounding: Grounded, with #8-32 brass ground screw (green)</li><br /><li>Circuit Capability: Rated to UL498 requirements for fault levels up to 1000A; dielectric strength rated at 2,000V</li><br /><li>Material Construction: Polycarbonate housing meets UL94 V-2 flammability rating</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Standards Compliance: Listed to UL Standard 498 File E2186; CSA Certified C22.2 No.42 File 285; NEMA WD-6 compliant</li></ul><p>&nbsp;</p>
