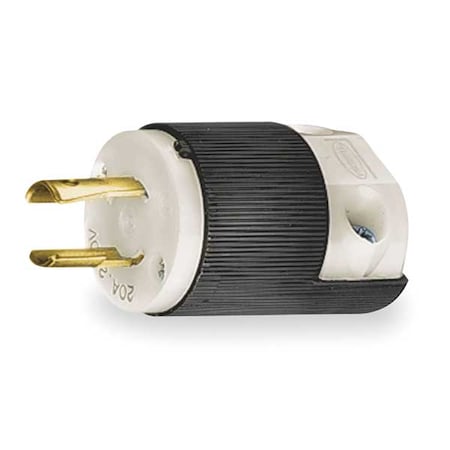

Locking Plug, L2-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 20A Twist-Lock Plug L2-20P is suitable for use in industrial settings where locking plugs are required. This 2-pole, 2-wire plug is rated for 20 amps and 250V AC, featuring a twist-lock mechanism intended to reduce the likelihood of unintentional disconnection. The unit includes an integral dust shield covering the wiring chamber to protect it from contaminants and includes self-threading screws for assembly. Its internal wiring chambers are separated, providing insulation between conductors and facilitating inspection.</p><br /><br /><p>Key Features of the HUBBELL - 20A Twist-Lock Plug L2-20P:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A at 250V AC</li><br /><li>NEMA Configuration: L2-20P (twist-lock)</li><br /><li>Poles/Wires: 2 poles, 2 wires; non-grounded</li><br /><li>Cable Range: Accepts cable diameters from 0.220 in to 0.720 in (#16 AWG to #8 AWG wire size)</li><br /><li>Housing Material: Nylon body with brass blades; rated as resistant to certain chemicals and impacts per manufacturer specifications</li><br /><li>Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use</li><br /><li>Flammability Rating: HB or better per UL94/CSA standards</li><br /><li>Screw Terminals: Standard screw terminal wire connection type</li><br /><li>Standards Compliance: Certified CSA C22.2 No.43, Federal Specification W-C-597, UL Listed (UL499)</li><br /><li>Ingress Protection: IP20 – suitable for indoor dry locations unless protected by additional means</li></ul><p>&nbsp;</p>
