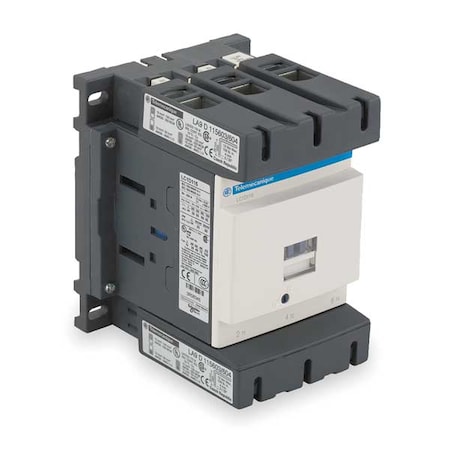

IEC Magnetic Contactor, 1NC/1NO, 24V DC, 3 P, Non-Reversing, Screw Clamp

Description

<p>The SQUARE D IEC Magnetic Contactor is a 3-pole, non-reversing power switch rated for operation within IEC-standard control circuits. It uses a 24 V DC coil to open and close main contacts and includes two auxiliary contacts (1NO/1NC) for signaling, all connected via screw clamp terminals. This TeSys Deca series device is intended for use in motor control and resistive-load applications and is configured as an IEC-style contactor without an enclosure.</p> <p>- Coil voltage: 24 V DC</li> <li>- Action: Non-Reversing</li> <li>- Poles: 3</li> <li>- Main contacts: 3 normally open</li> <li>- Auxiliary contacts: 2 total (1NO/1NC)</li> <li>- Coil and contact configuration: 1NC/1NO auxiliary</li> <li>- Mounting: DIN Rail, Plate</li> <li>- Electrical connection: Screw Clamp</li> <li>- Enclosure: Without an enclosure; IP20</li> <li>- Embedded suppression: Yes</li> <li>- Protective cover: Yes</li> <li>- Series: TeSys Deca (IEC)</li> <li>- Rated voltage: 1000 V AC, 300 V DC</li> <li>- Frequency: 50/60 Hz</li> <li>- Weight: 2.5 kg</li> <li>- Dimensions (approx.): Overall Height 6.22 in; Overall Depth 5.35 in; Overall Width 0.47 in</li> <li>- Max voltage rating: 1000 V AC</li> <li>- Rated making capacity: 1260 A @ 440 V (Power Circuit); 140 A (AC Signalling); 250 A (DC Signalling)</li></ul></p>
