Dayton

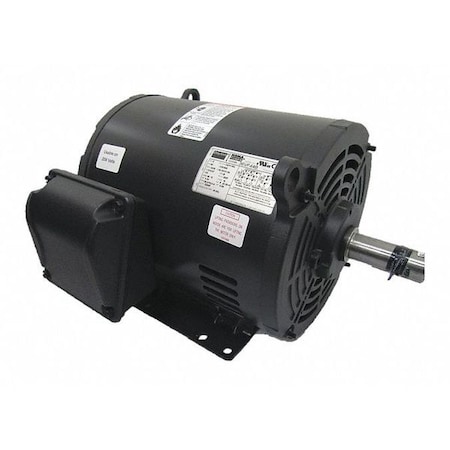

Three-Phase General Purpose Motor, 15 HP, 213/5T Frame, 230/460V AC Voltage, 3530 Nameplate RPM
SKU: IM-1578599 · MPN: 36VF44 · UPC: 190735275764
$1,676.39
+ $80.00 freight surcharge (per unit)
Usually ships in 1–3 business days
Free shipping on orders $50.00+ ·
orders under $50.00 ship for $6.49
Description
General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 15 HP, Nameplate RPM 3530, Frame 213/5T, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 34.0/17.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 90.2 Percent, Continuous Duty, 3001-3600, CSA, UL, Includes Conduit Box
Specifications
| Brand | Dayton |
|---|---|
| MPN | 36VF44 |
| UPC | 190735275764 |
| Country of Origin | Mexico |
| Unit of Measure | EA |
| Shipping Weight | 135.0 lb |
