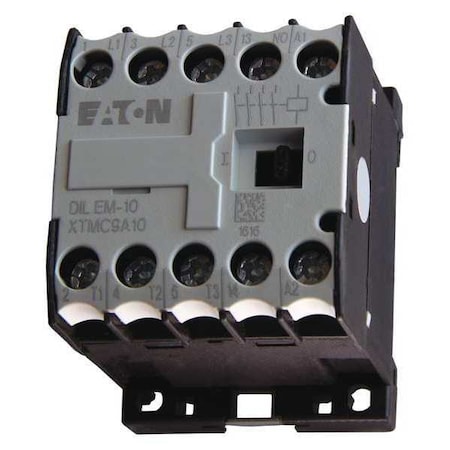

IEC Miniature Magnetic Contactor, 1NO, 240V AC, 3 P, Non-Reversing, Screw

Description

<p>The Eaton XT IEC Miniature Magnetic Contactor is a 3-pole, non-reversing device with a 240 V AC coil used to control lower-power circuits. Rated for operation within IEC standards, it is compatible with DIN-rail and panel mounting methods and includes 1 NO auxiliary contact (Frame A).</p> <p>- Coil Voltage: 240 V AC</li> <li>- Amperage rating: 8.80 A</li> <li>- Full Load Amps: Inductive 9 A; Resistive 20 A</li> <li>- Poles: 3</li> <li>- Auxiliary contacts: 1 NO</li> <li>- Auxiliary Contact Configuration: 1NO</li> <li>- Action: Non-Reversing</li> <li>- Reversing: No</li> <li>- Mounting style: DIN Rail, Panel</li> <li>- Mounting position: Vertical</li> <li>- Enclosure: No Enclosure</li> <li>- IP Rating: IP20</li> <li>- Frame / Series / Class: XT / Frame A</li> <li>- Maximum voltage rating: 690 V AC/DC</li> <li>- Electrical connection: Screw terminals</li> <li>- Includes embedded surge suppressor: Yes</li> <li>- Certifications/Standards: UL Listed; CSA Certified; IEC 60947; EN 60947; CE Marked; RoHS</li> <li>- Overall dimensions: Width 2.5 in; Height 2 in; Depth 2.5 in</li></ul></p>
