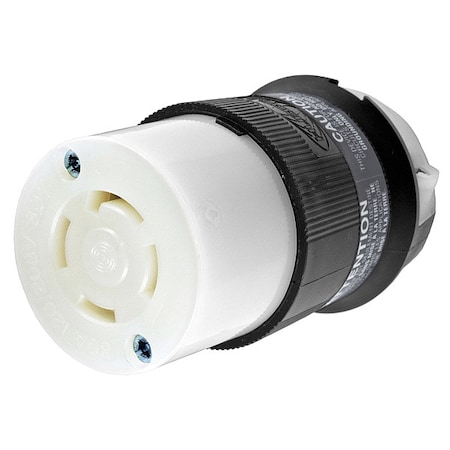

Locking Connector, L18-30R, 30 A, 120/208V AC, Three Phase, 4 Pole, Screw Terminals, Black, White

Description

<p>The HUBBELL 30A Twist-Lock Connector L18-30R is a heavy-duty industrial locking connector suitable for use in indoor, dry locations. It features a ribbed nylon housing provides grip; resistant to impact and certain chemicals, with a clear, funnel-shaped wire entry that facilitates wiring. The connector accommodates four poles and four wires, operates at 120/208V AC three-phase power, and is rated for 30 amps of current.</p><br /><br /><p>Key Features of the HUBBELL 30A Twist-Lock Connector L18-30R:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 30 A at 120/208V AC (three-phase)</li><br /><li>NEMA Configuration: L18-30R</li><br /><li>Cable Range: Accepts cable diameters from 0.350" to 1.150"</li><br /><li>Wire Size Compatibility: #16 AWG to #8 AWG stranded copper wire</li><br /><li>Nylon body is resistant to certain chemicals and impacts</li><br /><li>Cord Grip Design: Designed to reduce strain on terminations during use</li><br /><li>Wire Entry: Funnel-shaped entry assists with the wiring process</li><br /><li>Dust Shield: Integral shield reduces ingress of dust or contaminants into the wiring chamber</li><br /><li>Temperature Rating: Operates continuously up to 75°C; minimum -40°C without impact</li><br /><li>Flame Resistance: Meets HB or better per UL94 or CSA standards</li><br /><li>Standards Compliance: Certified to CSA C22.2 No.42, Federal Specification W-C-596, UL 498 listed</li></ul><p>&nbsp;</p>
