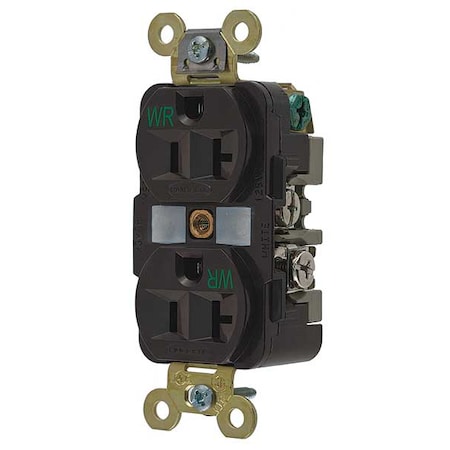

Duplex Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

Description

<p>The HUBBELL 20A Duplex Receptacle 125VAC 5-20R BN is a traditional duplex outlet designed for use in industrial settings. It features a rated as weather resistant construction and is rated for 20 amps at 125 volts AC. The receptacle supports both back and side wiring methods with screw terminals, accommodating #12 to #10 AWG stranded or solid copper wire. Its grounded design includes an integral brass ground strap and stainless steel auto ground clip for proper installation.</p><br /><br /><p>Key Features of the HUBBELL 20A Duplex Receptacle:<br><br /></p><ul><br /><li>Amperage/Voltage: Rated for 20 A, 125 VAC</li><br /><li>NEMA Configuration: 5-20R, duplex style</li><br /><li>Wiring Method: Back and side wired screw terminals; accepts #12–#10 AWG copper wire</li><br /><li>Rated as Weather Resistant: Suitable for harsh and heavy use industrial environments</li><br /><li>Material Construction: Nylon/reinforced PET housing with nickel-plated brass contacts</li><br /><li>Mounting Type: Flush mount; includes grounding clip and mounting hardware</li><br /><li>Dielectric Strength: Withstands minimum of 2,000V</li><br /><li>Operating Temperature Range: -40°C to +75°C (without impact)</li><br /><li>Circuit ID Face &amp; Finder Groove Face Style for identification and handling</li><br /><li>Certifications/Standards: UL Listed (UL498), CSA Certified C22.2 No.42, Federal Specification WC596, NEMA WD-6 compliant</li></ul><p>&nbsp;</p>
