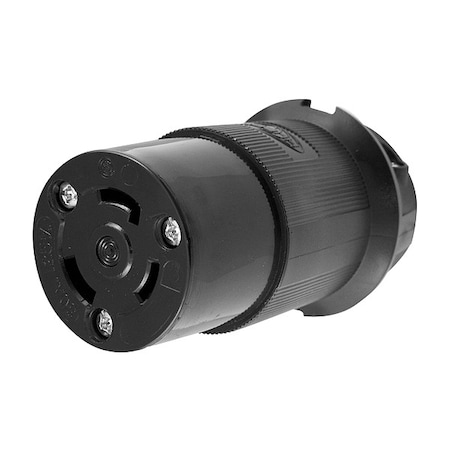

Locking Connector, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black

Description

<p>The HUBBELL 30A Locking Connector L5-30R is an industrial locking connector intended for electrical connections in indoor, dry environments. It features a two-pole, three-wire configuration and is rated for 30 amps at 125V AC. The connector includes a cord grip design helps reduce strain on terminations, as well as a clear, funnel-shaped wire entry to facilitate wiring. An integral dust shield includes a dust shield helps prevent contaminants from entering the wiring chamber.</p><br /><br /><p>Key Features of the HUBBELL 30A Locking Connector L5-30R:<br><br /></p><ul><br /><li>Amperage/Voltage Rating: Rated for 30 A and 125V AC with single-phase operation</li><br /><li>NEMA Configuration: L5-30R locking receptacle</li><br /><li>Cable Range: Accepts cable diameters from 0.360" to 0.930"</li><br /><li>Wire Size Compatibility: Supports #16 AWG to #8 AWG stranded copper wire</li><br /><li>Body Material: Constructed of natural white nylon housing with brass contacts; constructed of natural white nylon housing with brass contacts</li><br /><li>Operating Temperature Range: -40°C minimum (without impact) up to +75°C maximum continuous use</li><br /><li>Screw Terminals: Standard screw terminal connections identified per UL 498 requirements</li><br /><li>Flammability &amp; Safety Standards: Meets HB or better flammability rating per UL94; certified to CSA C22.2 No.42, Fed.Spec W-C-596, and listed to UL498 standards</li><br /><li>Ingress Protection: IP20 rated for indoor use only unless additional protection is provided</li></ul><p>&nbsp;</p>
