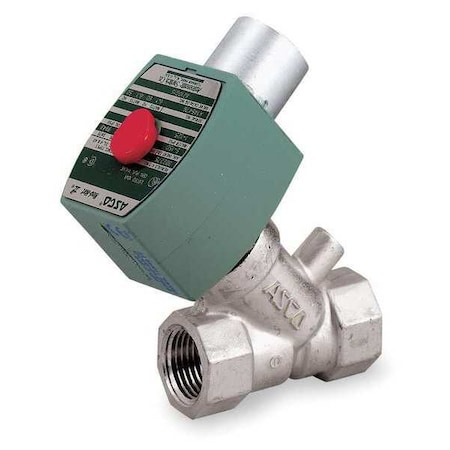

Solenoid Valve, 2-Way, 2-Position, Normally Closed, 1/2 in Pipe Size, 24V DC, High Flow, Brass, NBR

Description

<p>The ASCO 8210G015 is a 2-way, 2-position pilot-operated solenoid valve with a normally closed starting configuration designed to control the flow of air, inert gas, and water. It features a brass body and includes both the coil and sealing components required for installation. The valve is rated for a nominal pipe size of 1/2 inch with NPT thread type connections (inlet and outlet NPTF). It is rated to operate within an ambient temperature range of 14 to 140°F and is rated for fluid temperatures up to 150°F. The valve supports a maximum operating differential pressure of 40 psi for air/inert gas and 125 psi for water, with minimum differentials of 5 psi for each media.</p> <p>Key Features: <ul> <li>- Valve Design: 2-Way/2-Position, Normally Closed</li> <li>- Operation Type: Pilot Operated</li> <li>- Body Material: Brass</li> <li>- Nominal Pipe Size: 1/2 in with NPT thread type</li> <li>- Orifice Diameter: 7/16 in</li> <li>- Media Compatibility: Air, Inert Gas, Water</li> <li>- Includes Coil: Yes; Includes Seal: Yes</li> <li>- Electrical: 24V DC, 11.6 W wattage, 1/2 in Conduit Hub connection</li> <li>- Coil Enclosure: Without Junction Box, Watertight</li> <li>- Environmental Rating: Indoor, Outdoor; IP Rating: 66</li> <li>- Mounting Orientation: Vertical</li> <li>- Response Time: 1 second</li> <li>- Dimensions: Overall Height 3-3/8 in, Length 3-1/4 in, Width 2-5/16 in</li> <li>- Valve Starting Configuration: Normally Closed</li> <li>- Seal Material: NBR</li> <li>- Maximum Ambient Temperature: 140°F; Minimum Ambient Temperature: 14°F</li> <li>- Maximum Fluid Temperature: 150°F</li> <li>- Maximum Operating Pressure Differential: 40 psi (Air/Inert Gas), 125 psi (Water)</li> <li>- Minimum Operating Pressure Differential: 5 psi (Air/Inert Gas, Water)</li> <li>- Standards: UL Listed</li> </ul></p>
