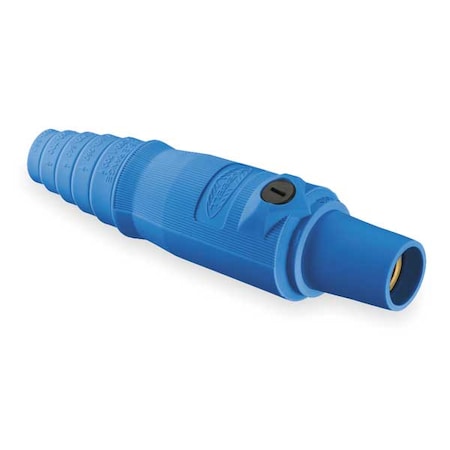

Connector,Double Set,Blu,300AC/DC,Female

Description

<p>The HUBBELL Series 16 Double Set Female Connector is a single pole device designed for temporary electrical power distribution. It features a double set screw terminal connection and accommodates cable sizes from 6 AWG to 2/0 AWG. The connector is rated for up to 300A at both AC and DC, with voltage ratings of 600V AC and 250V DC. Its construction includes a brass contact within a thermoplastic elastomer housing.</p><br /><br /><p>Key Features of the HUBBELL Series 16 Double Set Female Connector:<br><br /></p><ul><br /><li>Amperage Rating: Rated for up to 300A (AC/DC)</li><br /><li>Voltage Rating: Rated for operation at up to 600V AC or 250V DC</li><br /><li>Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG</li><br /><li>Terminal Connection Type: Double set screw terminal connection</li><br /><li>Contact Material: Brass conductor and contact material</li><br /><li>Housing Material: Thermoplastic elastomer housing provides resistance against impact and wear</li><br /><li>NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12K requirements</li><br /><li>Industry Standards: Complies with NEC, ANSI/NFPA 70; UL Listed; cUL Listed standards</li><br /><li>Taper Nose Style: Single cam taper nose configuration compatible with Series 16 devices</li></ul><p>&nbsp;</p>
